Our Constant voltage or constant potential chargers work by delivering current into a discharged battery until the voltage reaches the gassing or set point. The charging current is then gradually reduced to a level sufficient to maintain the battery indefinately without overcharge.

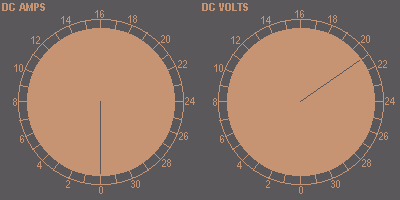

The animation begins with the charger delivering a current limited
maximum of 10A into a 24V lead-acid battery. The current will fall slowly
once the battery voltage reaches 2.25 volts per cell or 27.2VDC.
Notice how the charging current ramps up? This is a standard feature on all CBC chargers.
